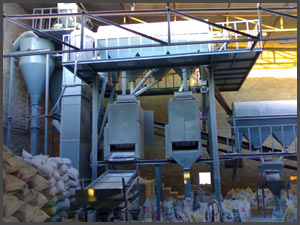

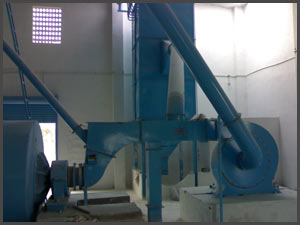

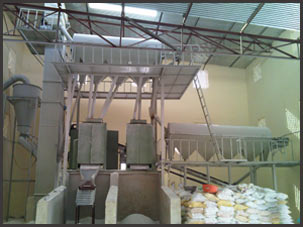

Plant Equipment Details

Hammer mills is a economical unit designed for general all-round work for time saving operation. Most often, the only changes necessary are of Screen, hammers and liners. Feed Material passes through a wide feed hopper into the grinding chamber. The swinging hammers, in the rotating hammer rotor, crush materials at the stationery liners before driving them trough a screen and type of hammers used. The method of operation is impact grinding. Traditional disintegrators are technologically replaced by these modern machine, having total flexibility.

S.No. Equipment Description
1 Disinticator Fabricated with 12 mm Plate pedetsal, pins, side plate 25 mm.
2 Bucket Elevator Size: 24' with 8 ply 8" belt etc.
3 Rotary Screen With 3 Screen included perforted sheets & platform.
4 Conveyor 75' + 40' + 20' approx as required.
5 Mesh Separator Size (Diameter - 4'; Length: 7' approx;) conical in shape FAB. 3mm sheet.
6 Complete Pipeline As required.
7 Jaw Crusher Jaw Crusher for stone crushing size 9" x 16".
8 Pulse Jet Fabric Filter Bag House For air polution control.
9 Magnet (1100-1200 Gross) Two drums with 2 plate with magnet.
10 Vibrator Vibrator set 6' x 3'.
11 Cyclone Size (Diameter 4'; Length: 7' approx), conical in shape fab. 14 gauge.
12 Platform & Structure

Electric Motor Requirement in 30/80 Hammer Mill Griding Plant

S.No. Name of Machine Capacity in HP RPM Units
1 Jaw Crucher size 9" x 16" 15 960 1
2 Conveyor Belt 2 960 2
3 42" Disinticator 25 960 1
4 Bucket Elevator 5 960 1
5 Rotary Screen 3 960 3
6 Blower 15 1440 1
7 Permanent Magnet Separator 1 960 2
8 Vibrator Screen 2 960 2
9 Refeed Conveyor 1 960 1
10 Compressor 3 960 1

Production capacity of 30x80 mesh grinding plant for quartz feldspar, line stone and dolomite mineral

Mesh Size Partical Size Prod. capacity(Per Hour)
0 to 2 mesh 0 mm to 9 mm 4 M.T.
0 to 4 mesh 0 mm to 4 mm 3.5 M.T.
0 to 16 mesh 0 mm to 1 mm 2.5 M.T.
0 to 20 mesh 0 mm to 0.8 mm 2 M.T.
0 to 30 mesh 0 mm to 0.6 mm 1.8 M.T.
